Illusions, No. 2

The impulse to challenge users and viewers has long been at the heart of trompe l’oeil (fool the eye) projects. When the eye sees something, the body believes it.

Two-dimensional patterns (made with tiles, carpet, paint, or…..) can create the optical illusion of three dimensionality.


In the pattern above, do you see stacked cubes with white tops? Or white bottoms?  Does the image change back and forth for you?

pattern 7

Here, the colors are rearranged. Is the white surface the top, right, left, or bottom of the cube?


Does this pattern look flat or 3-D? Do you see square holes or pyramids?

Pattern 2

Is this arrangement actually possible in three dimensions?

L Accademia

This sketch of the floor pattern at the Accademia Museum in Venice shows square “recesses” in the medallion on the right, anchored in a flat peach-colored field.  The 3-D illusion is contained, and I don’t fear falling through this floor.

82962747_4cb33a8ac4

Would this give you vertigo?

Golden_Staircase400

Would this stair landing make you pause before walking on it?

GEORGE-WINTERINGHAM_LISBONPAVING3

Can you feel the surface ripple?

3D-Optical-Illusion-Carpet

Does this (actually flat) carpeting make you want to stagger? Or worse?

warped

A computer-generated tile design clads these perfectly flat and plumb surfaces. Architect Thom Faulders‘ client said, “I wanted someone to barf when they look at it.” This illusion, versus the reality of its flatness, comes close!

The first five drawings were made by me. The first and second photos’ attributions are TBD; the third photo is courtesy of George Winteringham, via Patternity; the fifth photo is courtesy of Vurdlak; the sixth photo is courtesy of Thom Faulders.

Feel free to share the content of this blog, but please provide a link back to 2H Pencil.

I invite your comments.

Architecture Whisperer, No. 4

Behold, the building speaks!  This one says, “The Law of the State is ironclad. Judgment is exacting. Crime does not pay.”

Law Court Offices 1

The Law Court Offices in Venice, Italy consist of a tall, dark and narrow, nearly windowless monolith that connects, at the ground level, to buildings of a re-purposed 19th century factory complex. The varied components of the court system all exist or can be accessed from somewhere within this “black box.”

Law COurt Offices 6The dark form is clad in oxidized copper panels punctuated by narrow windows. The entry is recessed under a 15 foot overhang. The Law Court Offices’ light-absorbing, geometrically simplified presence would be remarkable in any setting.  It stands apart, attracts attention for being different, and strikes a degree of trepidation into the viewer.

In the context of Venice, the City of Water and Light, it is the antithesis of most Venetian buildings, especially those along the Grand Canal, that fairly glitter with surface pattern and ornament.

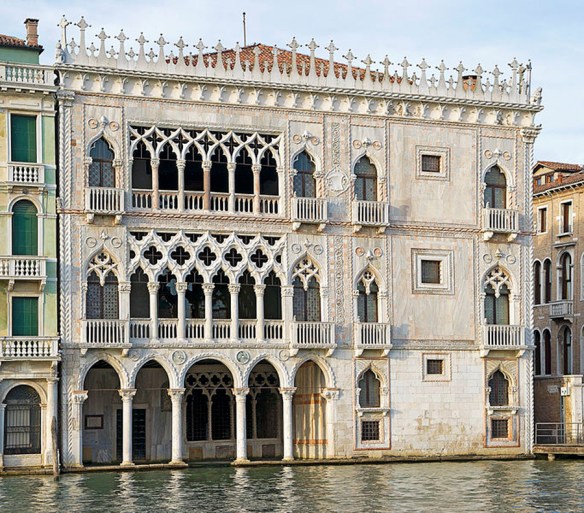

Ca'd'OroTypically, they meet the ground or water with colonnades, behind which are layered the cool recesses of shadowed loggias. Above is the Ca’ D’Oro.

The historical center of state justice in Venice was the Doge’s Palace, on St. Marks Square. It has fabric-inspired brickwork, pedestrian-friendly Venetian Gothic colonnades, and lacy terra-cotta ornament. This lovely exterior’s grandeur does not, however, correlate with the harsh judgments and punishments that were imposed from within.

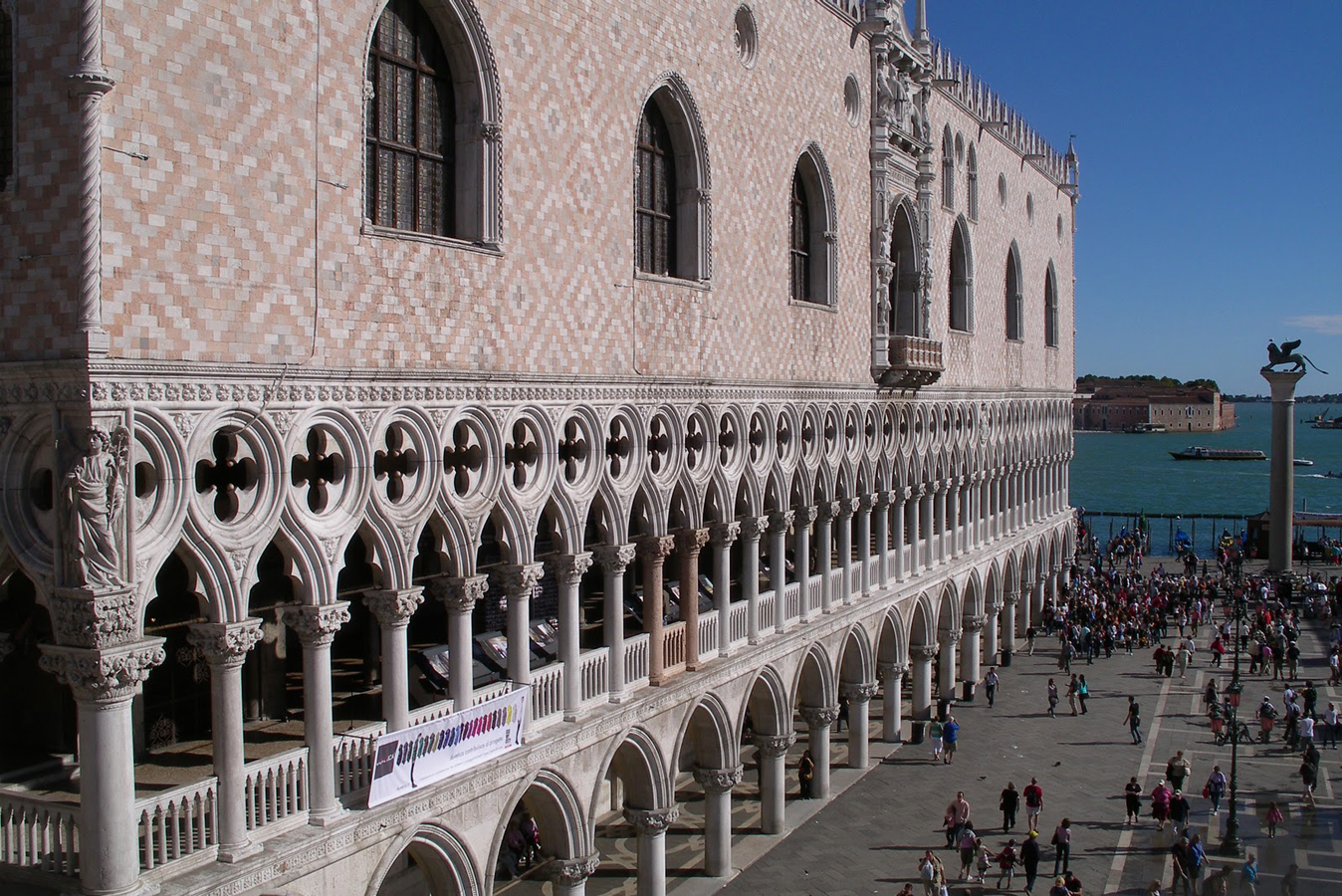

Doge's PalaceContrast the Doge’s Palace wall with the Law Court Offices’ wall:

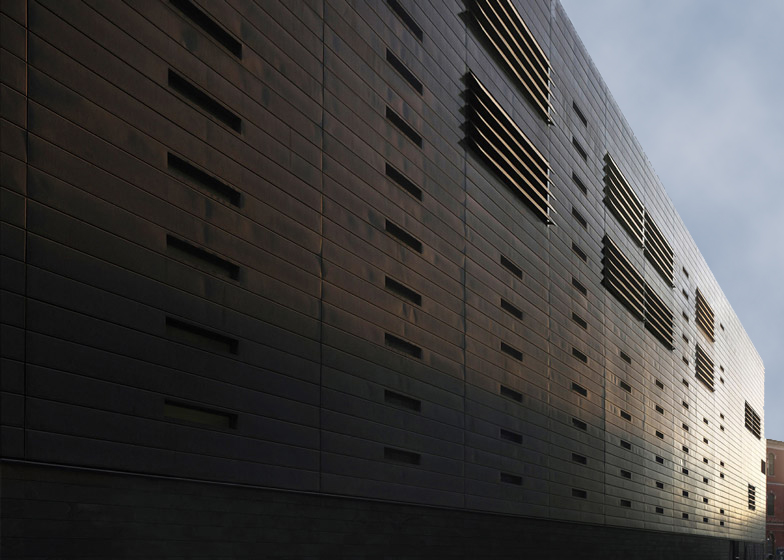

Law Court WallThe architect C+S contends that this simple, archetypical, compact shape and the choice of materials constitute a metaphor representing “institution,” in all of its connotations of tradition, organization, and ritual. In addition to this, I think it symbolizes power, severity, and a general unsympathetic authority.  The State will not be moved. No one can escape justice. This is the message about the Law revealed by Venice in its choice of this design.

As an interesting contrast, the new Law Courts of Bordeaux, France, deliver an entirely different message about the Law.

richard-rogers-law-courts-bordeauxIn the words of its architect Richard Rogers, “This form with its enclosing roof creates a legible container of parts.” The cone-shaped masses are courtrooms. Circulation paths and connections can be seen.

Rogers says that the building intentionally “emphasizes, through a feeling of transparency and openness, a positive perception of the accessibility of the French justice system.“

Whether or not French and Italian legal systems are exceptionally different from one another, these two municipalities have built architecture that speaks of two very different things.

Photo No. 1 courtesy of Pietro Savorelli; Photo No. 2 courtesy of  Alessandra Bello; Photo No. 3 courtesy of Pietro Savorelli; Photo No. 4 courtesy of Wikipedia; Photo No. 5 courtesy of John Hopewell’s blog Italy 2010; Photo No. 6 courtesy of Pietro Savorelli; Photo No. 7 courtesy of Peter Augustin.

Feel free to share the content of this blog, but please provide a link back to 2H Pencil.

I invite your comments.

Geomimicry

“…history tells us the art and architecture of ancient Egypt are creations from the mind of man; the desert tells us they are translations from the language of the landscape.”

 egypt 1

 Sahara Desert Rock Formation

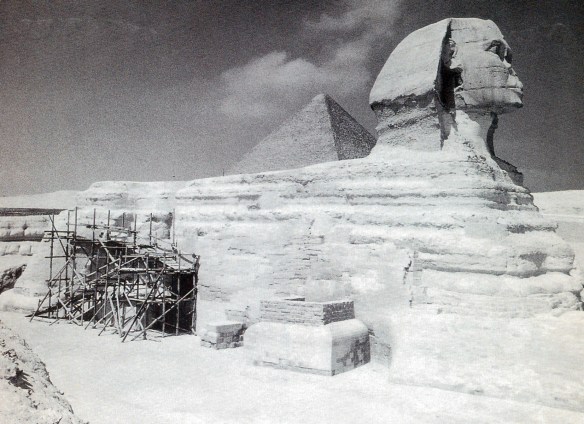

egypt 2The Sphinx at Giza

egypt 3

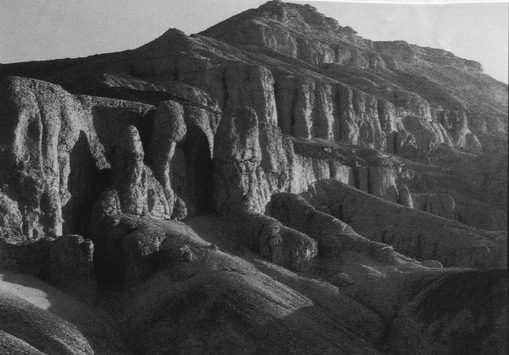

Theban Hills, West Bank, Luxor Hills

egypt 4Temple of Ramses II, Abu Simbel

Photos and quote from Architecture Magazine, circa 1998.
